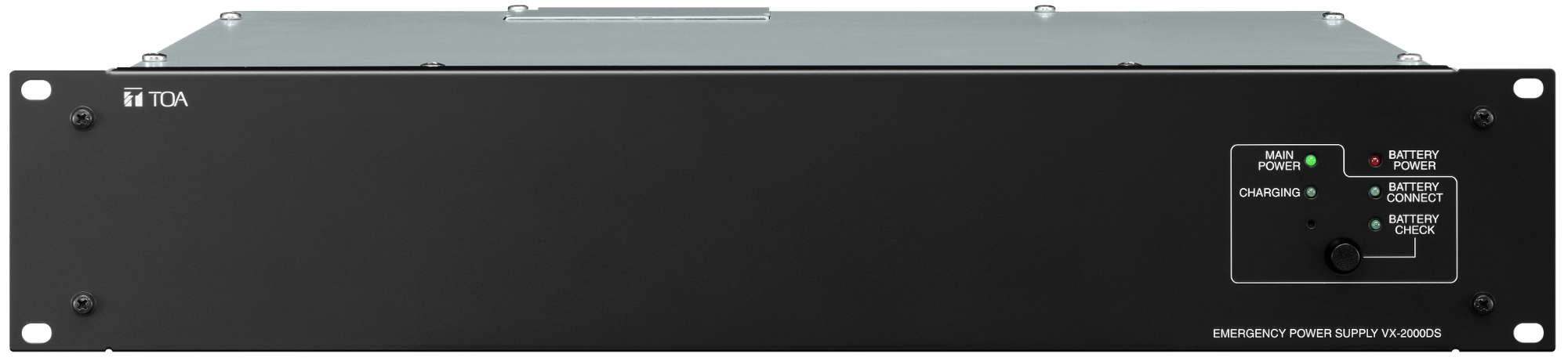

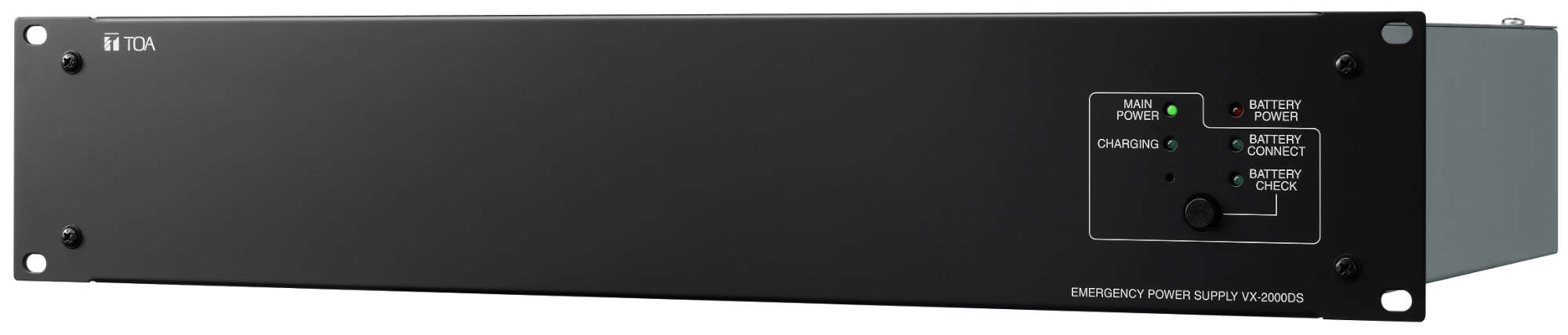

VX-2000DS

Emergency Power Supply

Discontinued

VX-2000DS

The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the VX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 x 12 V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.

Supplies the DC power to each component in the VX-2000 system by means of the VX 200PS Power Supply Unit
Keeps the batteries charged
Ambient temperature controlled charging voltage
Matching battery: 2 x 12 V sealed lead batteries
Automatically switch-over in case of AC mains failure
EN 54-4 certified, Certificate No: 1134-CPR-083

規格下載

電源

230 V AC, 50/60 Hz

消耗功率

240 W max.

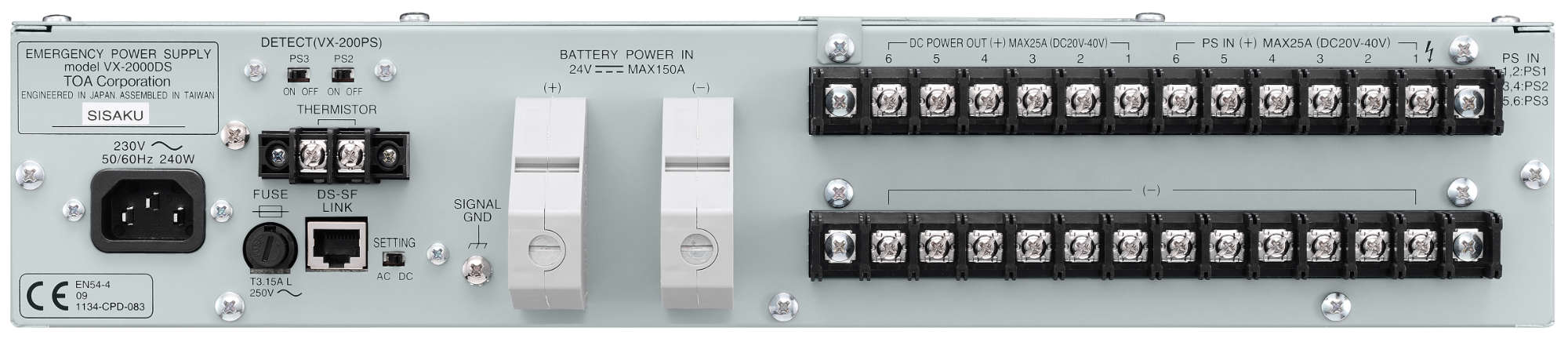

DC Power Output (AC mode)

6 (25 A max. each), M4 screw terminal, distance between barriers: 11 mm (0.43")

Current Specification

Maximum output current draw from the battery: 43.5 A
Rated maximum continuous output current, I max a: 43.5 A
Rated maximum short duration output current, I max b: 43.5 A
Rated minimum output current, I min: 0 A

適用電池

Yuasa: NPL65-12I (65 Ah)

充電方式

Trickle charging

充電電流

5 A max.

Charging Output Voltage

27.3 V ±0.3 V (at 25 °C or 77 °F)
Temperature correction coefficient: –40 mV/°C

Power Supply Input

6, M4 screw terminal, distance between barriers: 11mm (0.43")

Control Connector

RJ45 female connector for connecting the VM-3240VA or VM-3360VA
Twisted-pair straight cable (TIA/EIA-568A standard)
Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, and battery failure

Battery Connection

1 pair of positive and negative terminals
Applicable cable diameter: AWG 6 – AWG 0 (1/0) (Line resistance within 4 mΩ/total)
Cross sectional area: 16 - 50 mm2

工作溫度

0 °C to +40 °C (32 °F to +104 °F)

外觀

Panel: Surface-treated steel plate, black, 30% gloss, paint

尺寸

82 (W) x 88.4 (H) x 377.6 (D) mm (18.98" x 3.5" x 13.29")

重量

10.5kg (23.15 lb)

附屬品

Rack mounting screw x 4, Fiber washer x 4, Blade fuse (40 A) x 3, Fuse (T3.15 A L) x 1, Power Cord (2 m (6.56 ft) x 1, Insulating sheet x 1, Attention label (German) x 1, Fastener hook x 4, Fastener loop x 4, Sticker (Declaration of compliance) x 1, Thermal insulating sheet x 1

Fuse Rating

Blade fuse (40 A), Blade fuse (7.5 A), fuse (T3.15A)

Internal Resistance

Maximum internal resistance of the battery and its associatetd circuitry, Ri max. 50 mΩ

使用電纜線

Recommended cable parameter for DS-SF Link:
Twisted-pair straight cable (TIA/EIA-568A standard)
