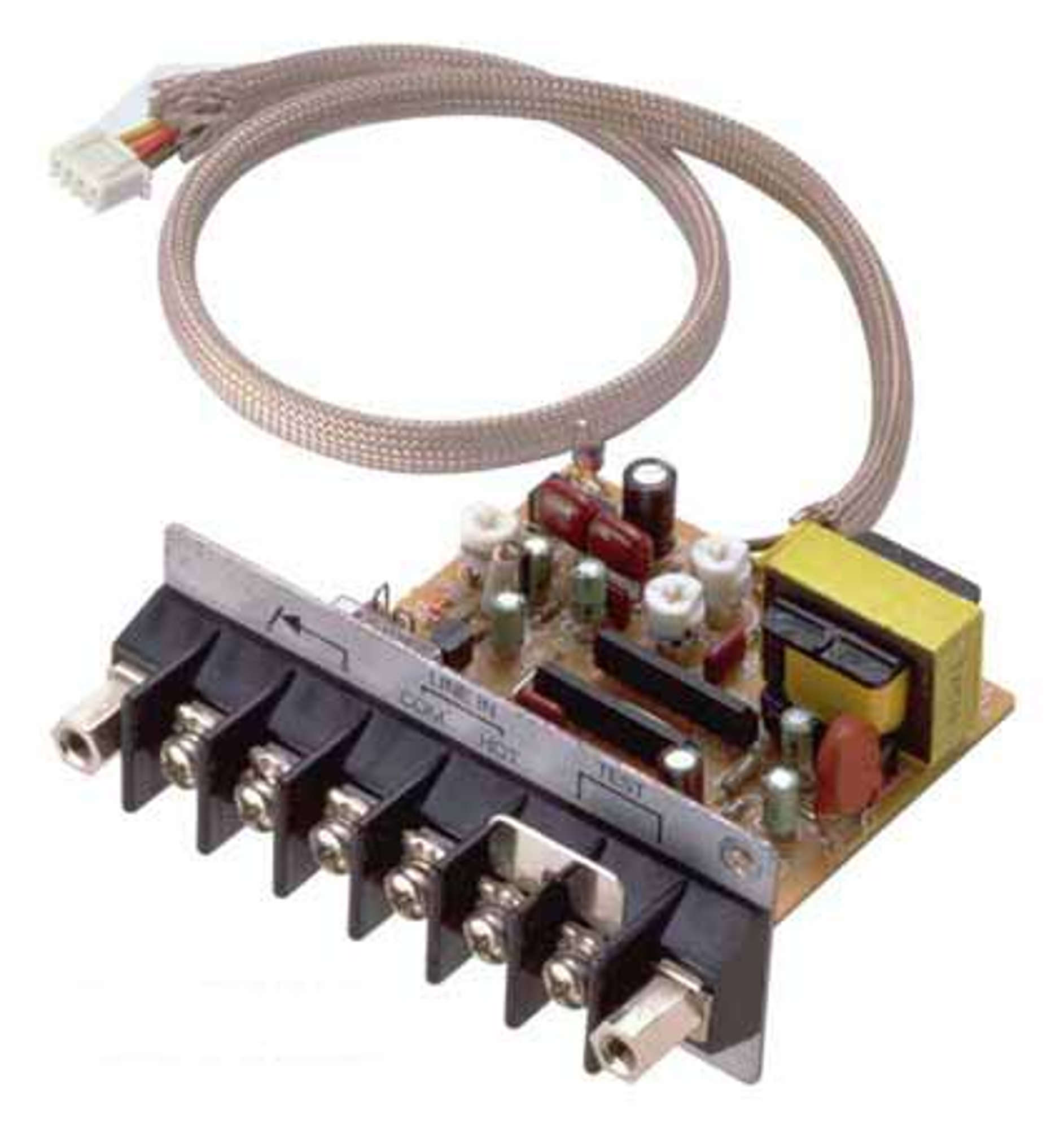

YA-1000A

故障偵測電路模板

Discontinued

YA-1000A安裝在擴大機中，用於偵測擴大機故障。避免在功率放大器並聯運作期間使用 YA-1000A，因為它無法正確偵測故障。

規格相關產品下載

電源

24 V DC (supplied from the power amplifier)

消耗功率

20 mA

輸入

LINE IN: Connects to the power amplifier's output (high impedance 100 V line)
M4 screw terminal, distance between barriers: 9 mm

Detected Fault Indication

Power amplifier's power indicator is extinguished.

Fault Detection Output

Relay contact closes.
Withstand voltage: 30 V DC, current capacity: 1 A

重量

140 g

附屬品

Terminal block cover x 1, Amplifier mounting screw x 2, Cover mounting screw x 2

請下載資料以獲取完整規格。
