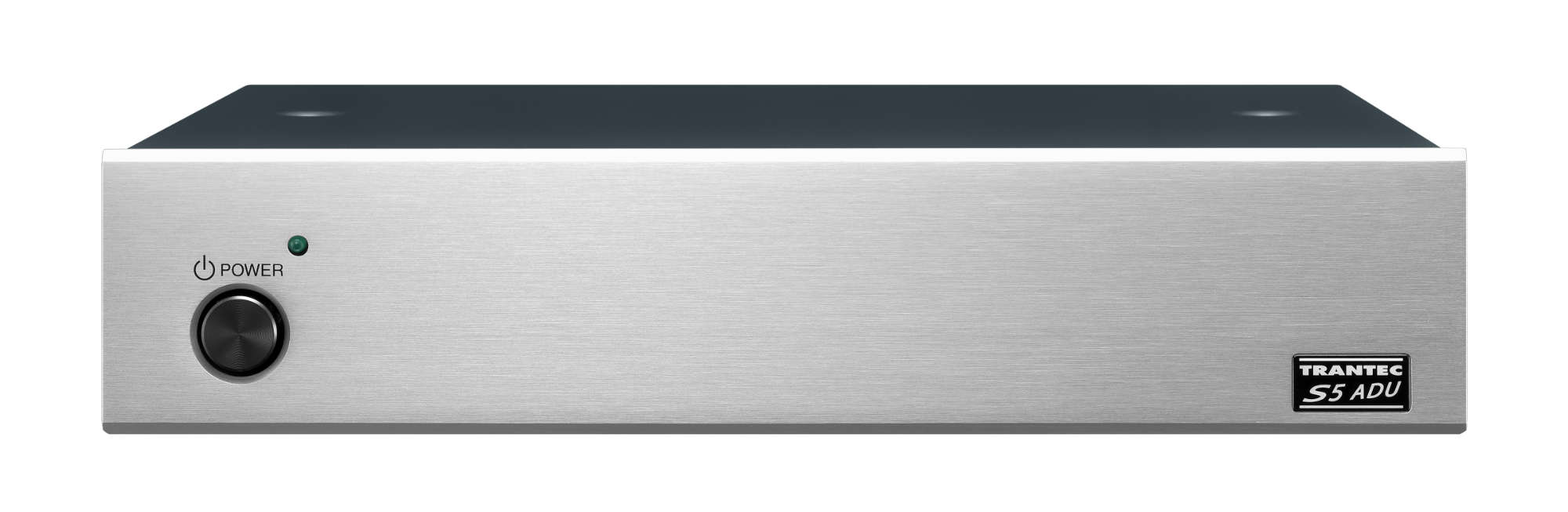

S5-ADU-GW
Antenna Distributor
S5-ADU-GW
The TRANTEC Wireless Antenna Distributor S5-ADU is designed to be used in conjunction with a UHF band system for sound reinforcement applications.It comes with 2 channels, in which a single antenna signal is distributed to 5 outputs.
- Active antenna splitter with two antenna inputs for distribution to four output pairs
- For larger systems the S5 ADU can be cascaded
電源
AC mains, 50/60 Hz
消耗電流
300 mA (12 V DC)
頻率範圍
606 - 638 MHz, UHF
指示燈
Power lamp
天線輸入
1 input, 50 Ω, BNC (phantom powering of 9 V DC/25 mA for antenna)
天線輸出
4 outputs and 1 link output, 50 Ω, BNC
工作溫度
-10 °C to +50°C (14 °F to 122 °F)
外觀
Front panel: Anodized aluminum, silver
Case: Steel plate, dark gray, painting
Case: Steel plate, dark gray, painting
尺寸
210 (W) x 46.4 (H) x 201.2 (D) mm (8.27" x 1.83" x 7.92")
重量
1.3 kg (2.87 lb)
附屬品
BNC cable (50 cm (1.64 ft), for connection) x 10
請下載資料以獲取完整規格。
