S5.5-RX
UHF Wireless Receiver
S5.5-RX
The S5.5-RX is a true diversity tuner. It features user-friendly operation, and employs an easy-to-read LCD display. Also, it is possible to operate the system settings through infrared communications, and to monitor the system status using the supplied PC software.
- 24 simultaneous channels per bank
- Software monitoring/programming
- Automatic frequency scanning
- Triple-squelch
- Full-metal housing

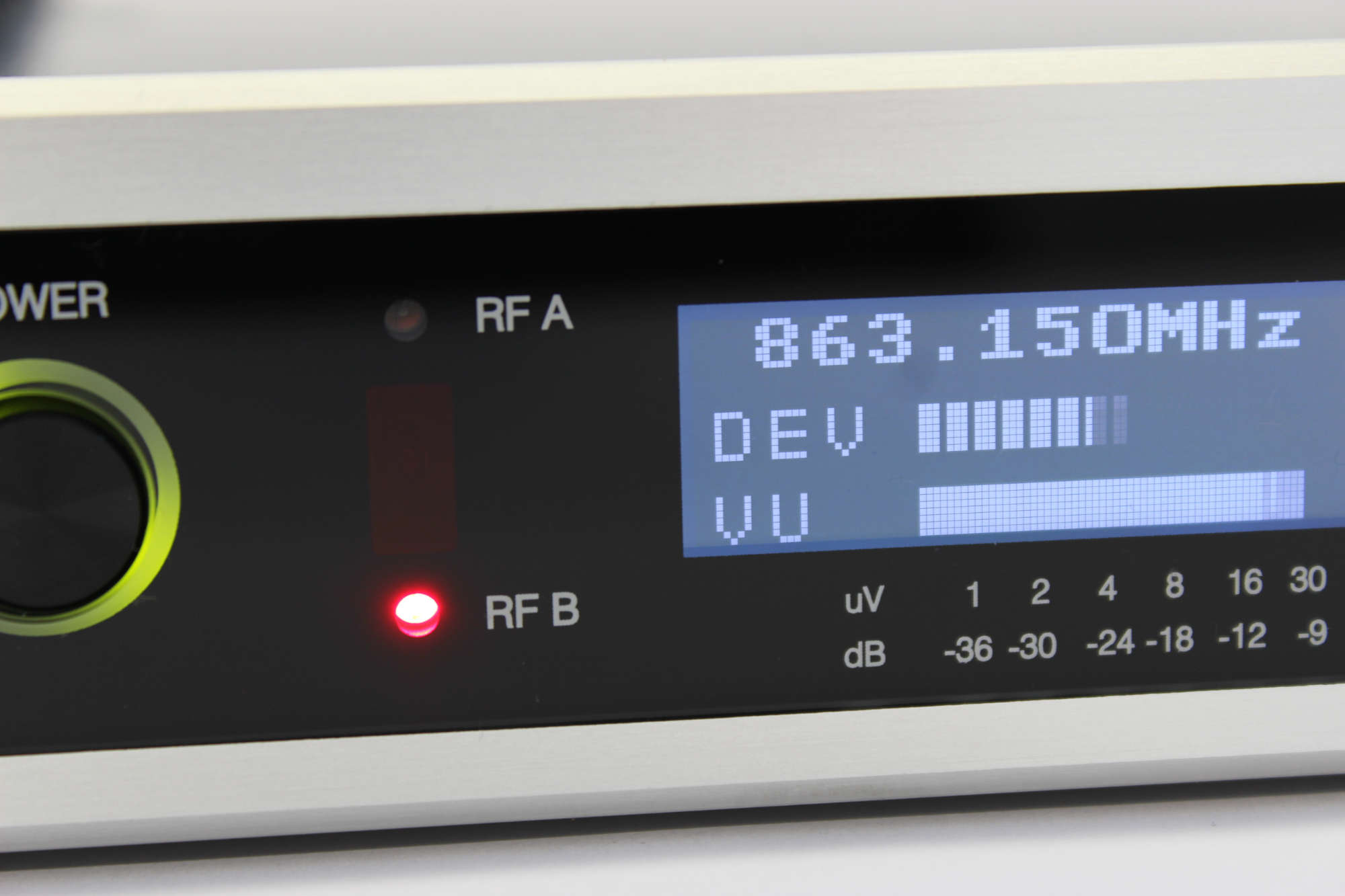

- LCD screen
- Other features: Infrared sync, USB port, EQ, phase reversal, mic/line switch, headphone output, BNC antenna inputs, adjustable triple-squelch
*0 dB = 1 V
電源
230V AC, 50 Hz (supplied AC adapter must be used)
消耗功率
300 mA (13V DC)
頻率範圍
794 - 830 MHz, UHF
頻道選擇
10 banks, 24 frequencies max/bank (the number of channels may differ from country to country)
接收方式
Double super-heterodyne
分集系統
Space Diversity (true diversity)
音聲輸出
Line: -22 dB* / Mic: -62 dB*
LINE/MIC selectable, 600 Ω, unbalanced, XLR-3-32 type connector
Headphone: max. 100 mW 16 Ω, unbalanced phone jack
-28 dB*, 600 Ω, unbalanced, phone jack
LINE/MIC selectable, 600 Ω, unbalanced, XLR-3-32 type connector
Headphone: max. 100 mW 16 Ω, unbalanced phone jack
-28 dB*, 600 Ω, unbalanced, phone jack
天線輸入
50 Ω, BNC
天線幻象電源
9 V DC, 30 mA (max) (Available to turn off phantom power)
接收靈敏度
0 dBμV or less (12 dB SINAD)
抑制靈敏度
6 - 36 dBμV variable
抑制系統
Using together of noise SQ, carrier SQ and tone SQ
音聲頻率
32.768 kHz
指示燈
LCD, Power lamp, Mute lamp, ANT A/B lamp
S/N比
110 dB or more (A-weight)
總諧波失真
1 % or less (typical)
頻率響應
50 Hz - 20 kHz, +/- 3 dB
其他功能
Audio Low-cut, High-boost and phase reverse, Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
工作溫度
-10 °C to +50 °C (14 °F to 122 °F)
外觀
Chassis: Steal, dark gray, paiting
Front panel: Anodized aluminum, silver
Front panel: Anodized aluminum, silver
尺寸
210(W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna)
重量
1.3 kg (2.87 lb)
附屬品
CD (PC Monitoring Software) x 1
請下載資料以獲取完整規格。
