S5.5-LTX
Beltpack Transmitter with Lavalier Microphone
S5.5-LTX

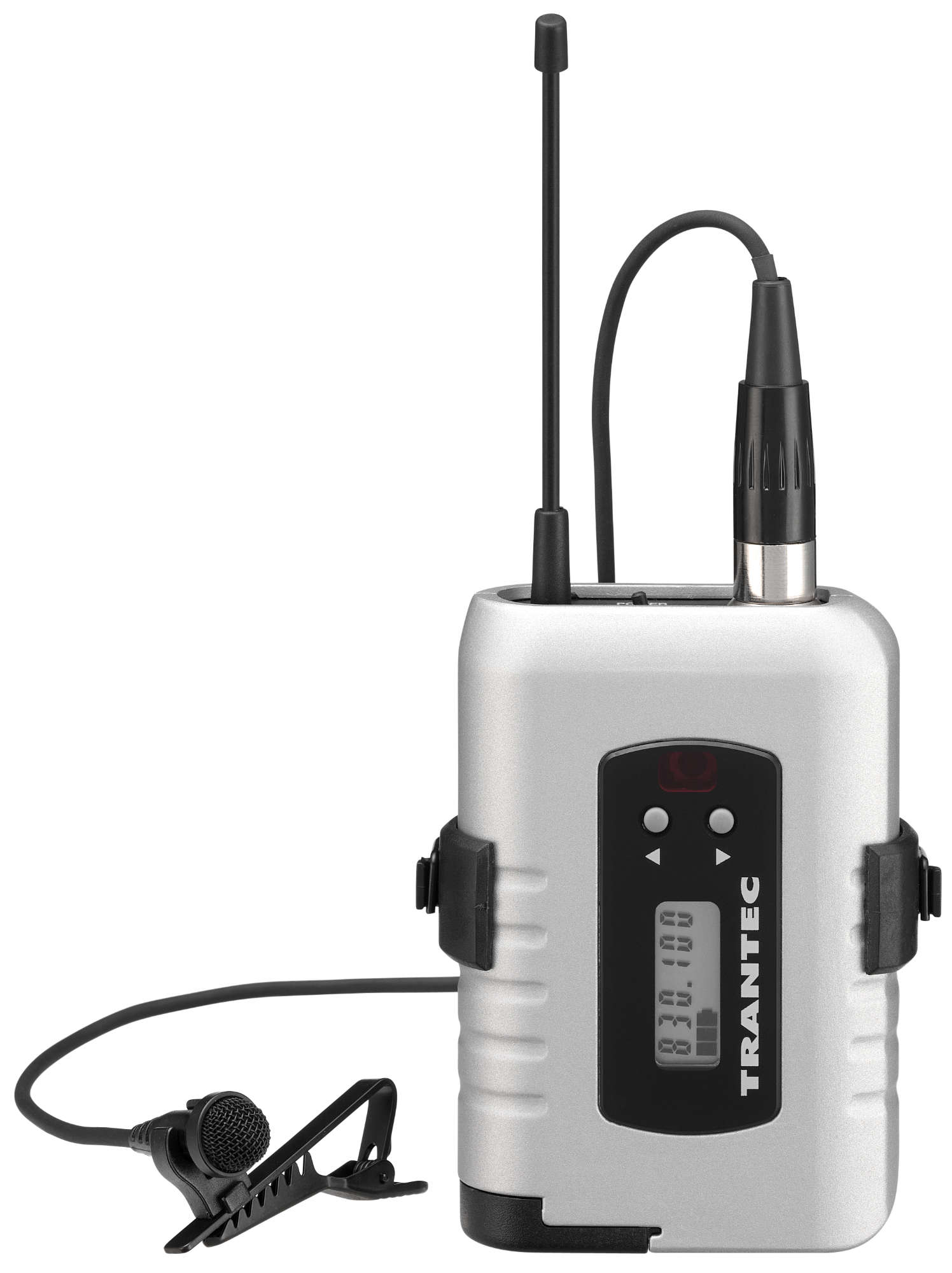

The S5.5-LTX is a beltpack transmitter with a lavalier microphone. This features user-friendly operability, and emply an easy-to-read LCD display. Also, It is possible to perfom the system settings through infrared communications.
麥克風組成
Electret condenser microphone, Omni-directional pattern
調變類型
Frequency Modulation
RF載波功率
50 mW or less
音聲頻率
32.768 kHz
調幅系統
PLL synthesized
最大輸入電平
120 dB SPL (microphone sensitivity: Gain "0")
音聲輸入端子
TA-4 (Mini-XLR 4 pins)
最大偏差
+/-40 kHz
音聲頻率響應
60 Hz - 20 kHz
動態範圍
110 dB or more (with S5.5-RX)
電池
LR6 (AA)
電池使用壽命
10 hours (alkaline)
指示燈
LCD display, power lamp
天線
1/4 λ mono-pole type
功能
Infra-Red ink port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0 -9; 20 dB)
工作溫度
-10 °C to + 50 °C (14 °F to 122 °F)
外觀
Silver
尺寸
55(W) x 80(H) x 22(D) mm (2.17" x 3.15" x 0.87")
重量
140 g (0.31 lb) (with battery)
附屬品
Belt clip x 1
