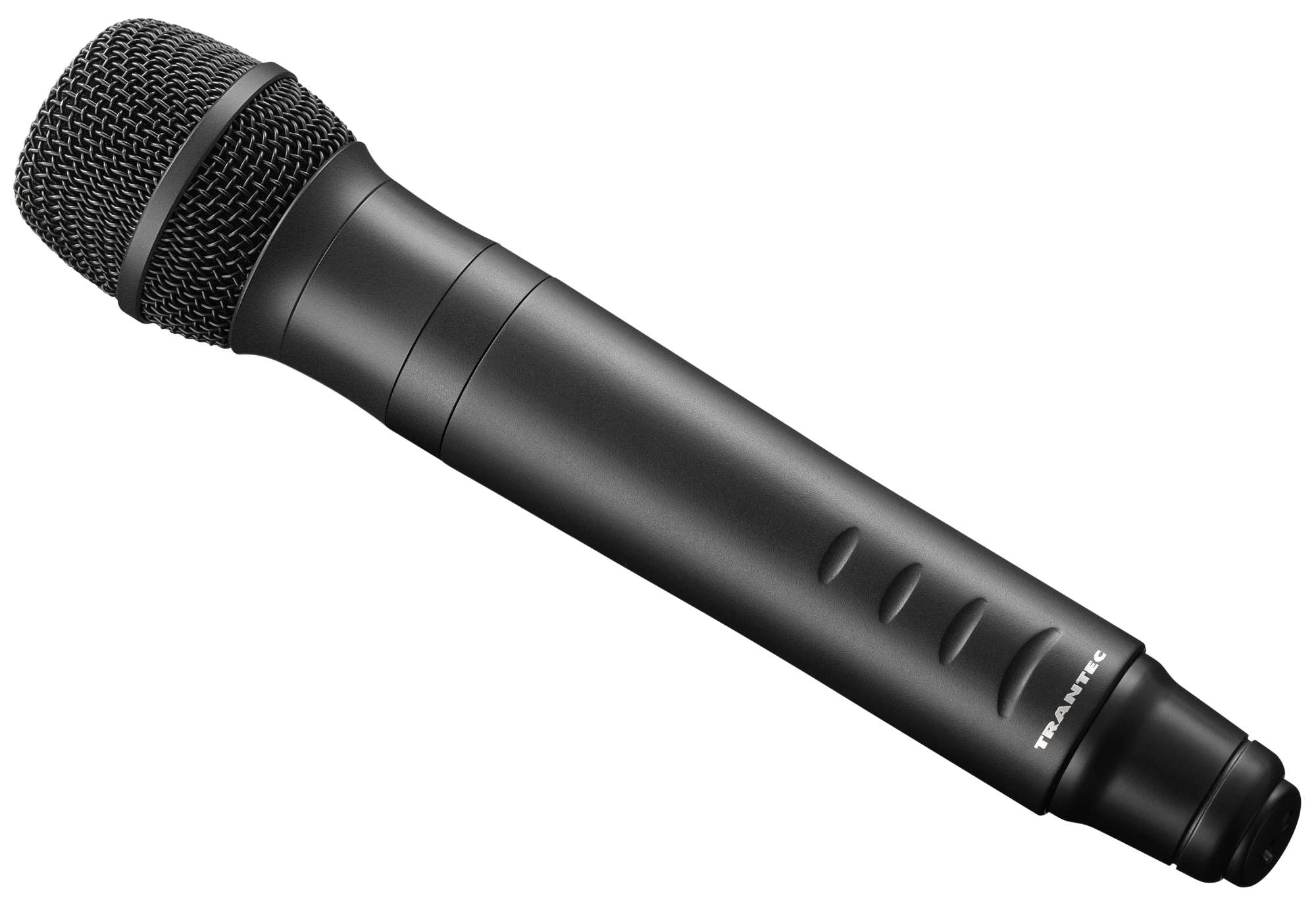

S5.5-HDX
Handheld Transmitter (Dynamic)
S5.5-HDX
The S5.5-HCX is a handheld wireless microphone. This features user-friendly operability, and employ an easy-to-read LCD display. Also, it is possible to perform the system settings through infrared communications.
- Dynamic cardioid microphone capsule
- Offering 1,400 transmission frequencies
- Full-metal housing is extremely durable, well weighted and highly ergonomical
- 1x AA battery allows up to 10 hours of continuous operation
- Infrared sensor for synchronization between the mic and the receiver
- Mute switch
- Pickup pattern ensures that ambient noise will be most effectively suppressed compared to frontal sources
- Integrated antenna
- Premium look, matt black finish of its body and grill
麥克風組成
Dynamic microphone with hyper cardioid
頻率範圍
794 - 830 MHz, UHF
RF載波功率
50mW or less
調幅系統
PLL synthesized
最大輸入電平
146 dB SPL (microphone sensitivity: Gain"0")
最大偏差
±40 kHz
音聲頻率響應
60 Hz - 20kHz
動態範圍
110 dB or more (with S5.5-RX)
電池
LR6 (AA)
電池使用壽命
10 hours (Alkaline)
指示燈
LCD display, power lamp
天線
Built-in type
功能
Mute switch, Infra-Red ink port, Battery life indicator ( 4 steps), Microphone sensitivity adjustment (Gain 0 -2; 12 dB)
工作溫度
-10 °C to +50 °C (14 °F to 122 °F)
外觀
Dark gray
尺寸
Ø50 x 247.9 mm (Ø1.97" x 9.76")
重量
380 g (0.84 lb) (with battery)
附屬品
Microphone holder W3/8" (with stand adapter) x 1, Color ring(6 colors) x 6
