S5.5-HCX

  • Handheld Transmitter (Condenser)
Handheld Transmitter (Condenser)

Handheld Transmitter (Condenser)

S5.5-HCX

The S5.5-HCX is a handheld wireless microphone. This features user-friendly operability, and employ an easy-to-read LCD display. Also, it is possible to perform the system settings through infrared communications.

  • Condenser cardioid microphone capsule
  • Offering 1,400 transmission frequencies
  • Extremely durable full-metal housing
  • LCD screen
  • Up to 10 hours of continuous operation with a single AA battery
  • Infrared sensor for synchronization between the mic and the receiver
  • Mute switch
  • Pickup pattern, which ensures that ambient noise will be most effectively suppressed compared to frontal sources as your mouth
  • Integrated antenna
  • Premium look, matt black finish of its body and grill
數量
▼
麥克風組成
Electret Condenser microphone unit: cardioid
頻率範圍
794 - 830 MHz, UHF
RF載波功率
50mW or less
調幅系統
PLL synthesized
最大輸入電平
142 dB SPL (microphone sensitivity: Gain"0")
最大偏差
±40 kHz
音聲頻率響應
90 Hz - 20kHz
動態範圍
110 dB or more (with S5.5-RX)
電池
LR6 (AA)
電池使用壽命
10 hours (Alkaline)
指示燈
LCD display, power lamp
天線
Built-in type
功能
Mute switch, Infra-Red ink port, Battery life indicator ( 4 steps), Microphone sensitivity adjustment (Gain 0 -2; 12 dB)
工作溫度
-10 °C to +50 °C (14 °F to 122 °F)
外觀
Dark gray
尺寸
Ø50 x 232.9 mm (Ø1.97" x 9.17")
重量
300 g (0.66 lb) (with battery)
附屬品
Microphone holder W3/8" (with stand adapter) x 1, Color ring(6 colors) x 6

請下載資料以獲取完整規格。

請登入以存取更多技術資料,例如軟體、韌體或EASE檔案。

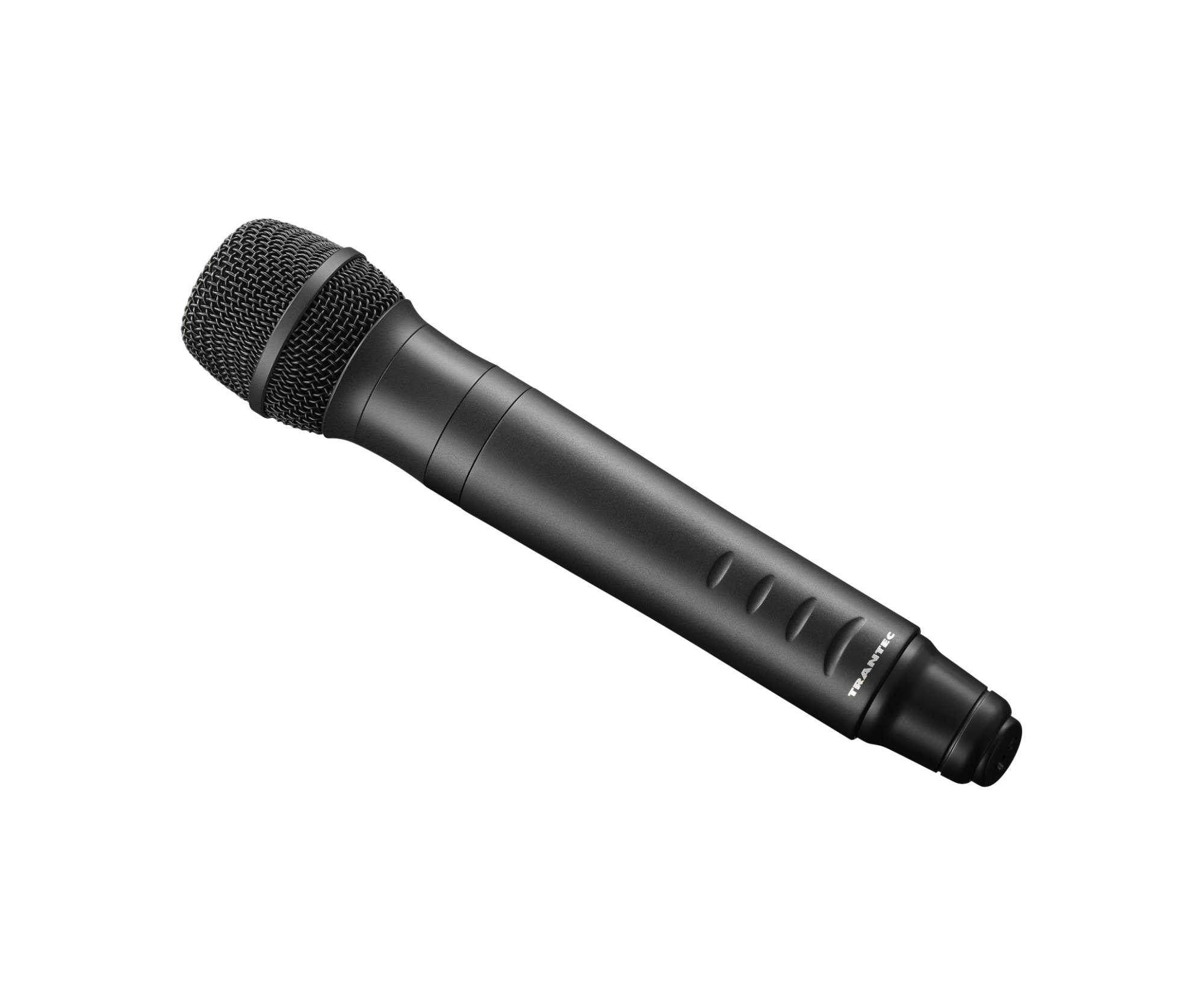

  • S5_mic.jpg
