IP-3010AF
音訊介面單元

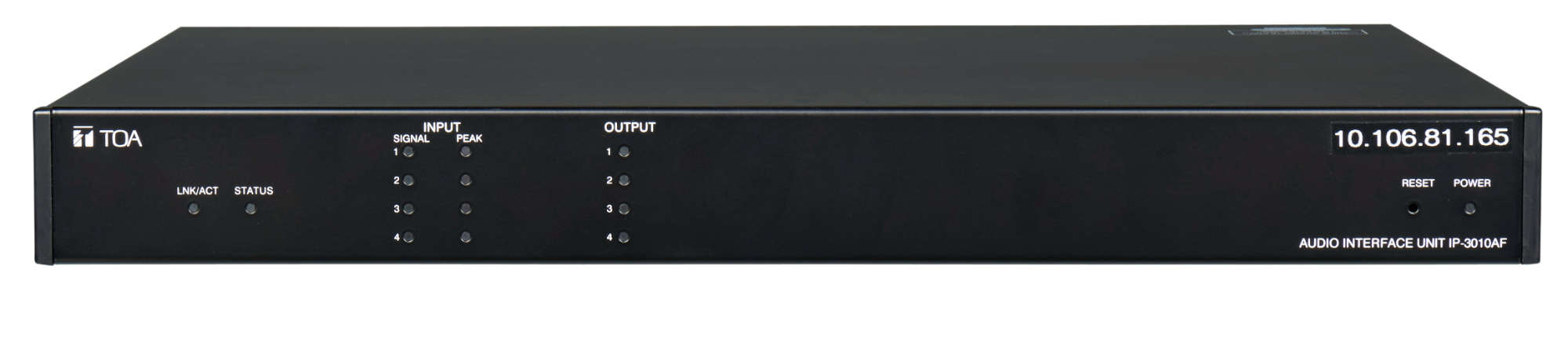

IP-3010AF

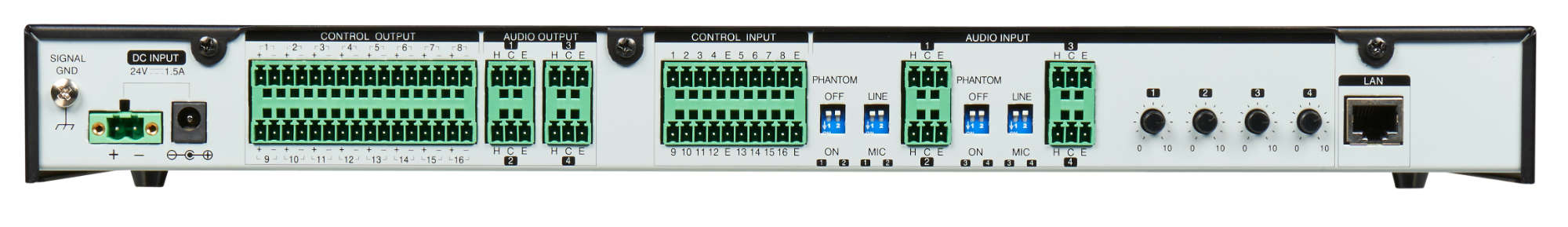

IP-3010AF是一款音訊介面單元，專為與TOA網路公共廣播系統IP-3000配合使用而設計，採用分組音訊技術。它夠在類比音訊訊號和數碼音訊訊號之間自由轉換，並實現透過LAN或WAN的長距離音訊信號傳輸。
- 4 channel analog audio input / output
- 16 control input / output contacts
(*1) 0 dB = 1 Vrms
電源
24V DC (removable terminal block 2 pins) or AC adapter (Accessory)
消耗電流
1 A (DC operation)
頻率響應
MIC 100Hz -16kHz ±3dB, LINE 20Hz - 20kHz ±3dB
音聲輸入
4 channels, electronically-balanced (optional, transformer-isolated), phantom power supply ( 17V, can be set with the switch), MIC -60dB*/LINE 0dB*(changeable), 2.2kΩ, removable terminal block 3P ×4
音聲輸出
4 channel electronically-balanced (optional, transformer-isolated), 0dB*, 10kΩ, removable terminal block (3P x4)
控制輸入
16 channels, no-voltage contact input, open voltage: 24V DC, short-circuit current, 5mA or less, removable terminal block (20P)
控制輸出
16 channels, relay output, withstand voltage: 24V DC, maximum current: 500mA, removable terminal block (32P)
指示燈
Network LNK/ACT: green x1, STATUS: green x1, SIGNAL: green x4, PEAK: red x4, OUTPUT: green x4, Power indicator: green x1
網絡I/F
Network I/F : 100BASE-T
Network protocol : TCP, UDP, ARP, RTP, CMP, TTP, IGMP, FTP
Connector: RJ45 Connector
Sound sampling frequency : 48 kHz
Quantifying bit number : 16 bits
Network protocol : TCP, UDP, ARP, RTP, CMP, TTP, IGMP, FTP
Connector: RJ45 Connector
Sound sampling frequency : 48 kHz
Quantifying bit number : 16 bits
Switch
Front: Reset switch; Back: DIP Switch, MIC/LINE gain switch, phantom power supply switch
Volume Control
4 channels input volume (Rear)
外觀
Steel plate, black, 30% gloss, paint
尺寸
420(W) x 44.3(H) x 360(D) mm
重量
4.3kg
附屬品
AC power adapter x1, Plastic support arms x 4, Screw for support arms x4, Removable terminal block 2P x1, Removable terminal block 3P x 8, Rack Mounting bracket MB-15B x2, Removable terminal block 10P x2, Removable terminal block 16P ×2, Screw for rack mounting x8
選配品
Wall Mounting bracket: MB-2015ST Q
