VM-2240
System Management Amplifier
VM-2240
The VM-2240 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector. It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions (optional EV-200M is required) in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, for 100 V/42Ω application the unit features the surveillance function (optional SV-200MA is required) which automatically checks the system for failures.
- Programmable system management amplifier
- 120 W or 240 W
- 5 switchable high impedance speaker zones with adjustable attenuators
- 9 units can be combined to increase the output power and number of zones
- 4 input channels come with volume and bass/ treble control on the front panel
- Both BGM inputs with level pre-adjustment
- The routing to the zones of the 3 microphone/ line level inputs and the telephone paging input can be pre-set
- Emergency power input, remote power control, 7 built-in chimes etc.
(*3) 0 dB= 1 V

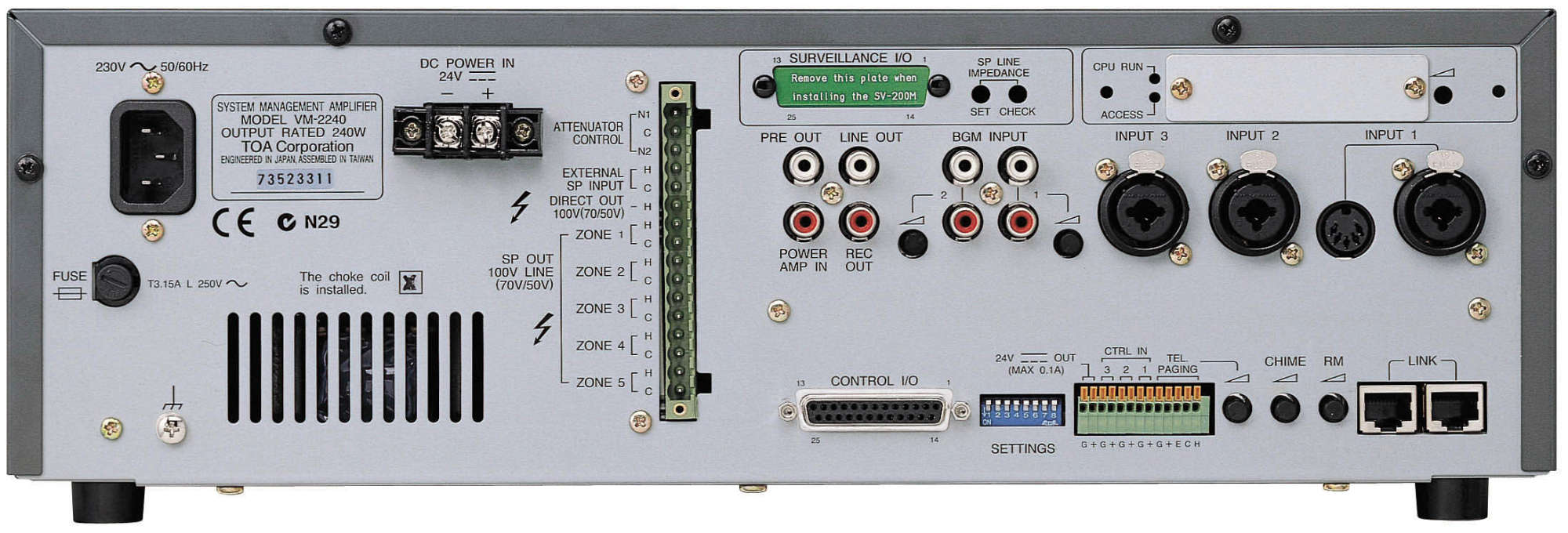

Power Source
AC: 220 - 230 V, 50/60 Hz
DC: 24 V/15 A, M3.5 screw terminal, Barrier distance: 8 mm (0.31"), Applicable cable gauge: AWG22 –AWG14
DC: 24 V/15 A, M3.5 screw terminal, Barrier distance: 8 mm (0.31"), Applicable cable gauge: AWG22 –AWG14
Power Consumption on AC Mains
With no signal present: 54 W
Under normal operating conditions according to EN60065: 1998 sec. 4.2: 255 W
With rated output signal: 549 W
Under normal operating conditions according to EN60065: 1998 sec. 4.2: 255 W
With rated output signal: 549 W
Current Consumption on 24 V DC Power Input
With no signal present: 1 A
Under normal operating conditions according to EN60065: 1998 sec. 4.2: 5 A
With rated output signal: 14 A
Under normal operating conditions according to EN60065: 1998 sec. 4.2: 5 A
With rated output signal: 14 A
Rated Output
240 W
Output Voltage/Impedance
100 V/42 Ω, 70 V/21 Ω, 50 V/10 Ω (selectable by the internal wiring change)
Frequency Response
50 Hz – 16 kHz
Distortion
1% or less
Signal-to-Noise Ratio
60 dB or more
Tone Control
Bass: 100 Hz ±10 dB, Treble: 10 kHz ±10 dB
(Inputs 1 – 3 and BGM individually adjustable.)
(Inputs 1 – 3 and BGM individually adjustable.)
Remote Microphone/Expansion Amplifier Connection
2 RJ45 female connectors for connecting the RM-200M Remote Microphone and the VM-2120 or VM-2240 unit used as an expansion amplifier.
Maximum distance: 800 m (874.89 yd) in total
Link cable: Category 5 Shielded
Number of connectable RM-200M’s: Up to 4
Twisted-pair straight cable (TIA/EIA-568A standard)
Maximum distance: 800 m (874.89 yd) in total
Link cable: Category 5 Shielded
Number of connectable RM-200M’s: Up to 4
Twisted-pair straight cable (TIA/EIA-568A standard)
Input
Inputs 1 - 3: -60 dB(*3) (MIC)/-10 dB(*3) (LINE) (changeable), 600 Ω, electronically balanced(*4), combined XLR connector (female)/phone jack (Only Input 1 is additionally equipped with DIN connector(*5).)
Telephone Paging Input: Push-in terminal block(*6)
Voice sound: -10 dB(*3), 10 kΩ, electronically-balanced input with shield terminal(*4)
Control: No-voltage make contact input, open voltage: 3.3 V DC, short-circuit current: under 1 mA
BGM 1 -2: -20 dB(*3), 10 kΩ, RCA pin jack, monaural (internally mixed)
Power amplifier input: 0 dB(*3), 10 kΩ,, RCA pin jack
External speaker line input: 100 V line, for All-Zone broadcast (This input is selected when the "Unit's broadcast cutoff" control is activated)
Telephone Paging Input: Push-in terminal block(*6)
Voice sound: -10 dB(*3), 10 kΩ, electronically-balanced input with shield terminal(*4)
Control: No-voltage make contact input, open voltage: 3.3 V DC, short-circuit current: under 1 mA
BGM 1 -2: -20 dB(*3), 10 kΩ, RCA pin jack, monaural (internally mixed)
Power amplifier input: 0 dB(*3), 10 kΩ,, RCA pin jack
External speaker line input: 100 V line, for All-Zone broadcast (This input is selected when the "Unit's broadcast cutoff" control is activated)
Output
Speaker output: Plug-in screw connector(*7)
5-zone selector with attenuator (all zones simultaneously selectable)
Direct speaker line output: Direct output from the power amplifier output transformer (attenuator bypassed), Plug-in screw connector(*7)
Line output: 0 dB(*3), 10 kΩ, RCA pin jack
Recording output: 0 dB(*3), 10 kΩ, RCA pin jack
Preamplifier output: 0 dB(*3), 10 kΩ, RCA pin jack
5-zone selector with attenuator (all zones simultaneously selectable)
Direct speaker line output: Direct output from the power amplifier output transformer (attenuator bypassed), Plug-in screw connector(*7)
Line output: 0 dB(*3), 10 kΩ, RCA pin jack
Recording output: 0 dB(*3), 10 kΩ, RCA pin jack
Preamplifier output: 0 dB(*3), 10 kΩ, RCA pin jack
Control Input
No-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less
short-circuit current: 1 mA or less
Control Input and Output
"D-sub connector (25-pin, female)
Input: No-voltage make contact input, open voltage: 3.3 V DC,short-circuit current: 1 mA or less
Output: Open collector output, withstand voltage: 30 V DC, control
current: 10 mA or less
(1) External control input
Activation of messages *8
Activation of power
Activation and stop of Emergency Broadcast
Unit’s broadcast cutoff (when activated by an external emergency equipment)
(2) Status output
Irregularity of communications with the Remote Microphone and an expansion amplifier
AC power condition
DC power condition
Irregularity of the sound source of the Voice Announcement Board
Failure (FAULT) indication on
Power switch on"
Input: No-voltage make contact input, open voltage: 3.3 V DC,short-circuit current: 1 mA or less
Output: Open collector output, withstand voltage: 30 V DC, control
current: 10 mA or less
(1) External control input
Activation of messages *8
Activation of power
Activation and stop of Emergency Broadcast
Unit’s broadcast cutoff (when activated by an external emergency equipment)
(2) Status output
Irregularity of communications with the Remote Microphone and an expansion amplifier
AC power condition
DC power condition
Irregularity of the sound source of the Voice Announcement Board
Failure (FAULT) indication on
Power switch on"
External Attenuator Control Output
Plug-in screw connector(*7), relay, no-voltage make contact output, transfer type, withstand voltage: 30 V DC, 125V AC, contact current: 7 A (DC) or less, 7 A (AC) or less
Surveillance Input and Output (*9)
D-sub connector (25-pin, female)
Input: No-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less
Output: Open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less
Input: No-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less
Output: Open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less
Power Supply
24 V DC/0.1 A, for supplying power to an optional Amplifier Control
Unit RU-2001/-2002, push-in terminal block (*6)
Chime Tones
Built-in chime: 2-tone chime/2-tone chime (fast repeat)/4-tone chime (Up)/Single-tone chime/ 4-tone chime (Up & Down)/off
Voice Announcement Board sound source: Pre-recorded chime (*8)
Voice Announcement Board sound source: Pre-recorded chime (*8)
Function
Two units stacking (VM-2120 or VM-2240)
Emergencya broadcast (sequential control)
Broadcast priority control
Surveillance (failure detection) function (*9)
Power supply to only one Remote Microphone (RM-200M)
Line resistance: 40 Ω (one way) or less
Emergencya broadcast (sequential control)
Broadcast priority control
Surveillance (failure detection) function (*9)
Power supply to only one Remote Microphone (RM-200M)
Line resistance: 40 Ω (one way) or less
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Finish
Panel: ABS resin, dark gray (PANTONE 447C or its equivalent), paint
Case: Steel plate, dark gray (PANTONE 446C or its equivalent), paint
Case: Steel plate, dark gray (PANTONE 446C or its equivalent), paint
Dimensions
419 (W) x 143.3 (H) x 355.7 (D) mm (16.5" x 5.64" x 14")
Weight
14.5 kg (31.97 lb)
Included Accessories
Power cable (2 m (6.56 ft) x 1, Name lable x 1, Volume cover x 4, Miniature type time-lag fuse T3.15 A x 1
Optional Accessories
Rack mounting bracket: MB-36
Input transformer: IT-450
Voice announcement board: EV-200M
Surveillance board: SV-200MA
Input transformer: IT-450
Voice announcement board: EV-200M
Surveillance board: SV-200MA
(*4) Can be transformer-balanced with the addition of an optional IT-450 input transformer.
(*5) For connection of the Paging Microphone PM-660D with a remote control switch
(*6) Usable cable diameter: AWG26 - AWG20, 0.5 m²
(*7) Usable cable diameter: AWG24 - AWG12, 2.5 m²
(*8) An optional EV-200M Voice Announcement Board is required. The chime sound source must be pre-recorded into a CF (CompactFlash) card to be inserted into the EV-200M Board.
(*9) An optional SV-200MA Surveillance Board is required.
(*5) For connection of the Paging Microphone PM-660D with a remote control switch
(*6) Usable cable diameter: AWG26 - AWG20, 0.5 m²
(*7) Usable cable diameter: AWG24 - AWG12, 2.5 m²
(*8) An optional EV-200M Voice Announcement Board is required. The chime sound source must be pre-recorded into a CF (CompactFlash) card to be inserted into the EV-200M Board.
(*9) An optional SV-200MA Surveillance Board is required.
Please download Datasheet to access full specifications.
Microprocessor-controlled PA management amplifier, as a table top unit or with optional brackets in standard 19-inch cabinet racks can be mounted.
Three balanced inputs for microphone or recording with control inputs, height / low tone control and switchable phantom power via XLR combo jacks, transformers easily retrofitted. Input for telephone announcements. The output circuits 1-5 can be associated separately each of the above-mentioned inputs. Up to 4 auditable digital stations can be connected via an RJ-45 connection. Two audio inputs for background music with two cinch Sockets and level before controllers, as well as height / low tone control.
There are 5 levels of priority.
100 V power amplifier with 240 Watt of power, idle-secure and short-circuit protected, easily convertible to 70 V or 50 v 5 output circuits, individually zuschalt-and adjustable in steps 0, - 3, 6,-10,-15 and -20 dB at any power sharing as well as a collective call key. Switching display using LEDs. In the transmission of signals with high-priority automatic bypass the volume control and display of duty call operation. Compulsory control contact for external volume control.
100V input to the 5 circles, output switchable by external duty call signal from parent PA headquarters, or switched-off device.
According an exit before and after the total volume control to the use of additional amplifiers. Recording output for the master signal.
Simple combination of up to 9 ELA management amplifiers to extend 45 circuits and power increase possible.
Additional control inputs for: throwing the text rendering of the digital text storage, remote activation, start and stop of alarm texts, activation of the 100V-Eingangs.
Fault status outputs for: power and emergency power supply, receivers and amplifier combination connection, errors in the text memory.
Labels for the front taxable inputs and outputs.
In emergency mode play of two texts for warning and evacuation.
Digital text storage and monitoring module can be retrofitted.
