S4.10-HD2

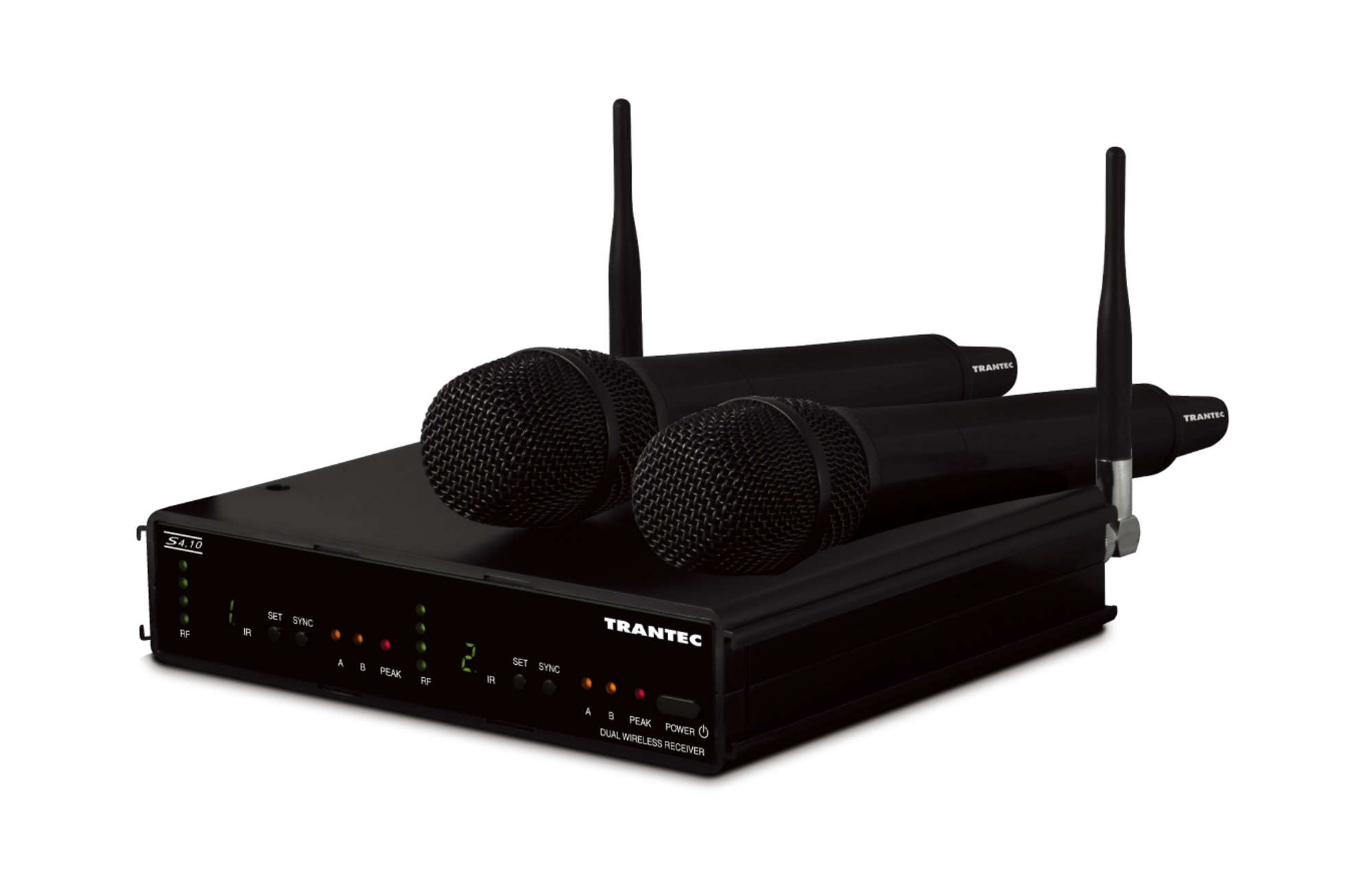

S4.10 Dual Channel Wireless Set

S4.10-HD2

The TOA’s TRANTEC S4.10 series Wireless Microphone system is designed for use on the UHF frequency band, and suitable for vocal or speech reinforcement applications. It features a compander circuit which minimizes the influence of ambient noise. S4.10-HD2 includes two wireless handheld microphone and a dual wireless receiver.

An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature or voltage fluctuation.
>Power/Battery lamps indicate battery consumption to prevent the unit from malfunctioning when the battery level remarkably decreases.
Up to 10 hours of continuous use with single AA alkaline battery.
The state of battery consumption can be displayed on S4 series RX receiver's indicator.
Quick channel scanning and auto channel set-up.
Infra-red auto channel set-up.
>Compact size and high reliability.

Specifications Downloads

System Components

Handheld wireless microphone x 2, Receiver x 1

Frequency Range

506 - 937.5 MHz*, UHF

Channel Selectable

Up to 16 channels (depending on region)

Tunable Frequency

25 kHz steps

Tone Frequency

32.768 kHz

Total Harmonic Distortion

1 % or less at 1 kHz

Function

IR Sync, Channel scan, Battery life indicator

Included Accessories

AC Adapter** x 1, Microphone holder W5/16" x 2

*C band : 785 - 832 MHz, UHF
*G(UK) version: 220 - 230 V AC, 50 Hz

Please download Datasheet to access full specifications.
