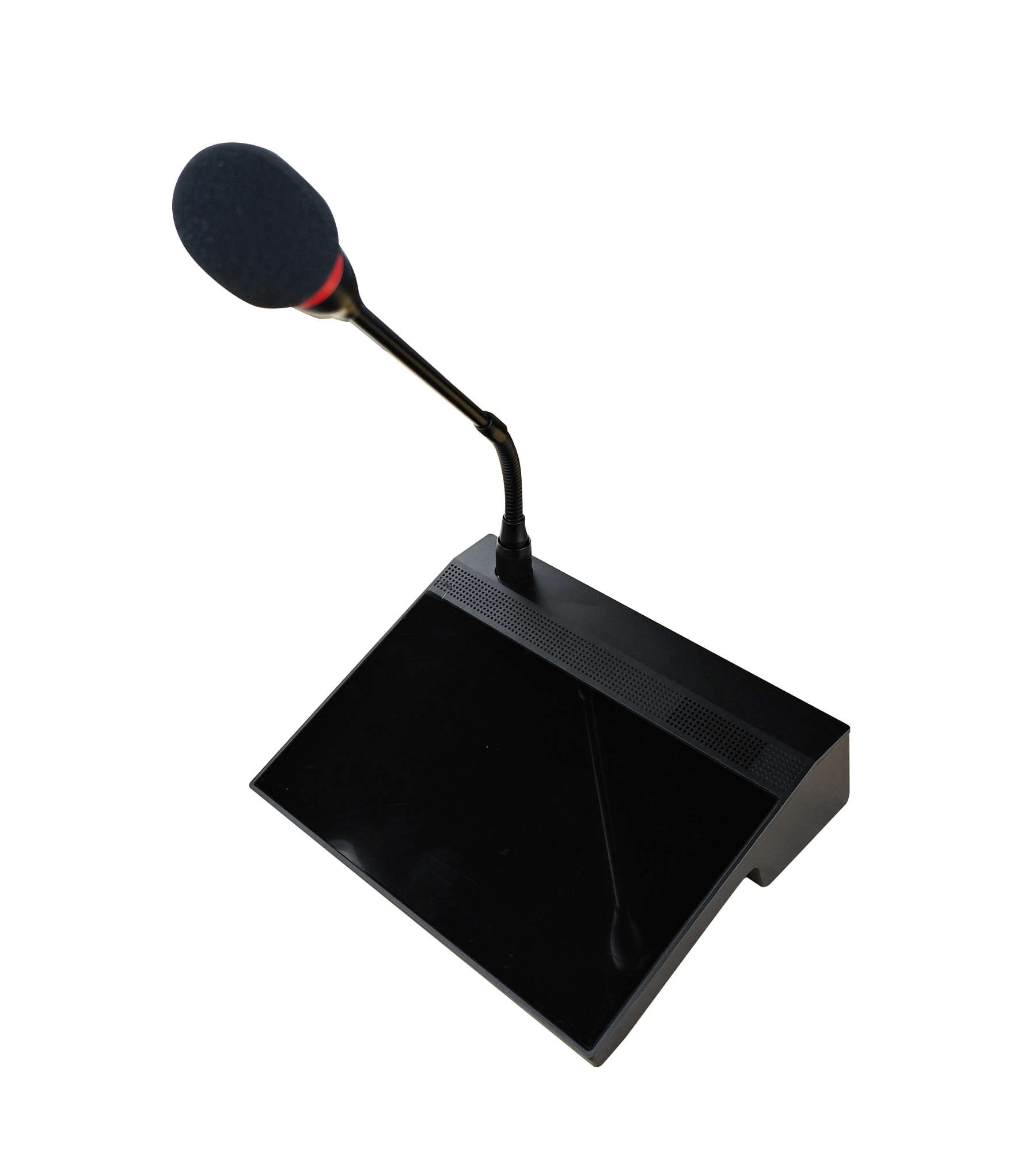

IP-107RM
IP Remote Microphone
IP-107RM
IP Remote Microphone IP-107RM adopted modern minimalist style product appearance design and is a high-performance intercom paging device based on TCP/IP, SIP, UDP and other transmission protocols. As a simplified IP-based paging device, its commonly used functions include emergency broadcasting, zone paging, initiate/receive intercom and device monitoring.
- Capacitive touch screen
- Support file broadcast, pre-record broadcast, TTS(Text-To-Speech) broadcast to designated zones or terminals
- Support of initiating & receiving offline call without server
- Support standard SIP protocol for easy integration with mainstream SIP PBX
- Support online viewing of the working status of other terminals, which is convenient of debugging and maintenance
Power Source
DC 12V / 1.5A
AC Power Consumption
≤10W (AC adapter)
Display
7 inch touch panel color LCD screen
Audio Input
Sampling Frequency: 8k – 44.1kHz, Quantization Size: 16bit, Bitrate: 8k – 320kbps
Frequency Response
40 - 18KHz
Microphone
Gooseneck type, electret microphone
Network I/F
100Base-TX, MDI/MID-X, RJ45
Network Protocol
TCP/IP, UDP, ARP, ICMP, IGMP, HTTP, SIP, RTP
Operating Temperature
0 – 45℃
Operating Humidity
90% or less (no condensation)
Finish
Aluminum black, ABS back
Dimensions
183.9(W) x 169.0(H) x 58.4(D) mm
Weight
0.72 kg
Included Accessories
Gooseneck Microphone x1, Connection Terminal(3.5-5P) x1
Please download Datasheet to access full specifications.
Please sign in to access further technical materials such as software, firmware or EASE files.
