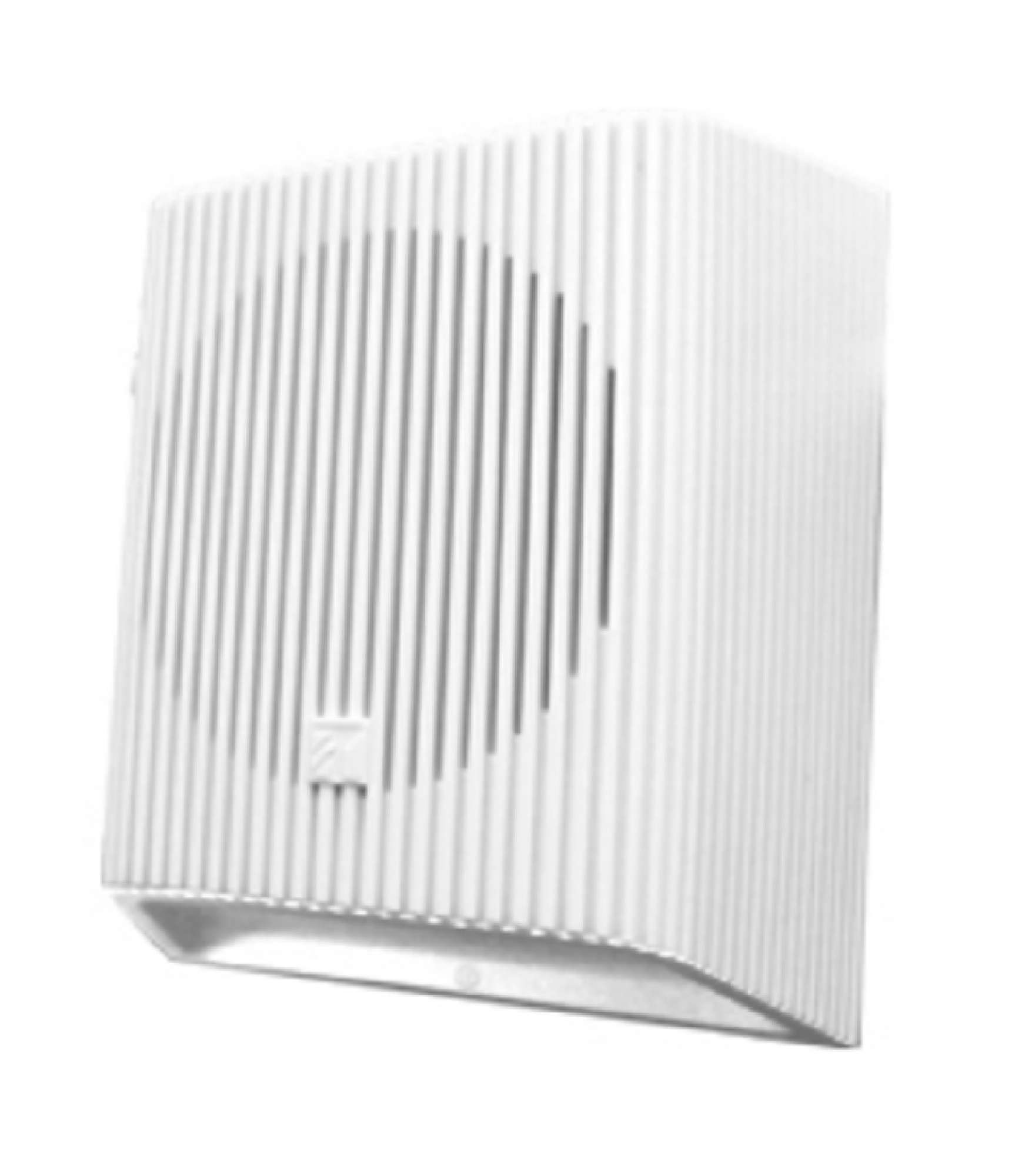

BS-1006

Wall Mount Box Speaker 6W

BS-1006

The BS-1006 is wall mount speaker made of HIPS resin and can be hooked or mounted directly on the wall. The push-in type input terminal makes cable connections easy and allows bridge wiring. 5 inches all full range speaker, The 5 inches all full range speaker unit handles audio usage from background music to announcement broadcast.

High performance low cost
Elegant design
For music & announcement

Specifications Downloads

Rated Input

6W ( 100 V line). 3W (70 V line)

Rated Impedance

100V line: 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W)
70V line: 1.7kΩ (3W), 3.3kΩ (1.5W), 10kΩ (0.5W)

Sensitivity (1W, 1m)

91dB

Frequency Response

120Hz – 15kHz

Speaker Component

12 cm (5”) cone-type speaker

Cable Requirements

Solid copper wire:Φ0.8-Φ1.6 mm (AWG 20-14)
7-core twisted copper wire: 0.75 -1.25 mm2 (AWG 18-16)

Connection

Push-in connector (bridging terminal)

Operating Temperature

-10°C to +50°C

Finish

Case: HIPS resin, Traffic White
Rear board: HIPS resin, Primary color

Dimensions

172.3 (W) × 192.6 (H) × 103.3 (D) mm

Wall Mounting Dimensions

Case front mount: 184mm
Fixing hole mount: 120mm

Weight

780g

Included Accessories

Speaker mounting screw (4 x 25) x2, Speaker mounting screw (4 x 35) x2

Please download Datasheet to access full specifications.
